Definitions

Unless otherwise stated, words and expressions used in this Operator’s Guide have the same meanings as those defined in the HVNL and the Notice.

Eligible vehicles

To be eligible to operate under the Notice, approved combinations must comply with all requirements of the MDL.

The Notice applies to a Queensland Class 3 heavy vehicle that is a combination consisting of a prime mover towing a semitrailer and an unladen converter dolly as shown in Table 1.

Table 1: Eligible vehicle combinations

Description	Image of eligible vehicle	Maximum length (m)

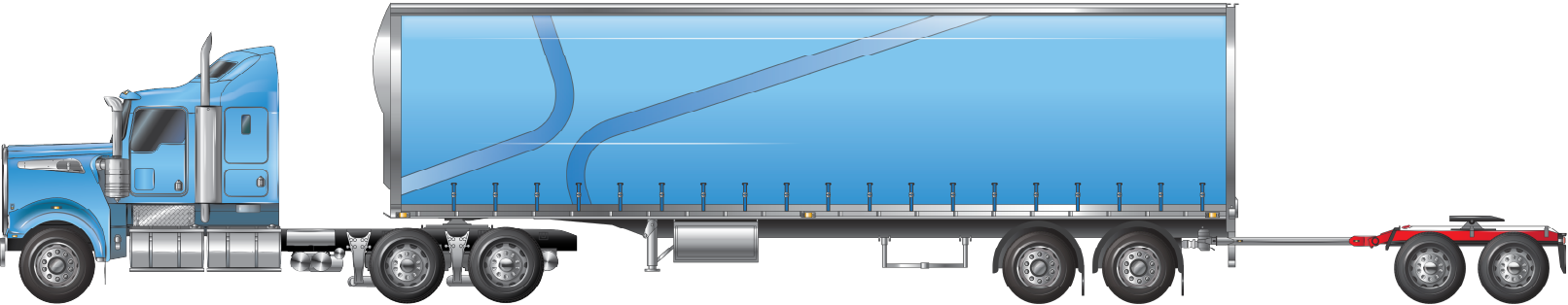

Prime mover and semitrailer towing an unladen converter dolly		19.0

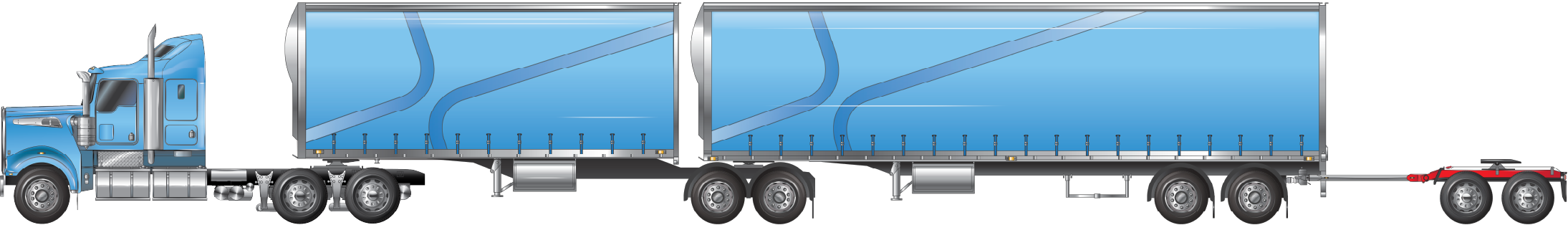

B-double towing an unladen converter dolly		26.0

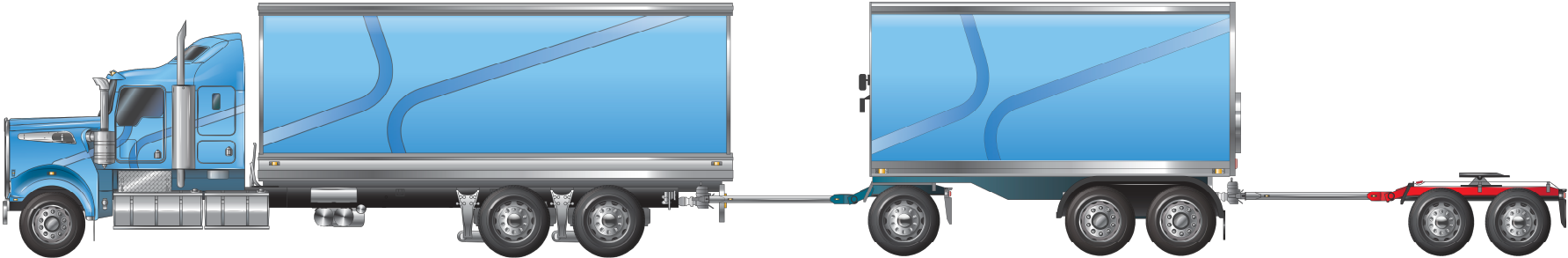

Rigid truck and dog towing an unladen converter dolly		31.0

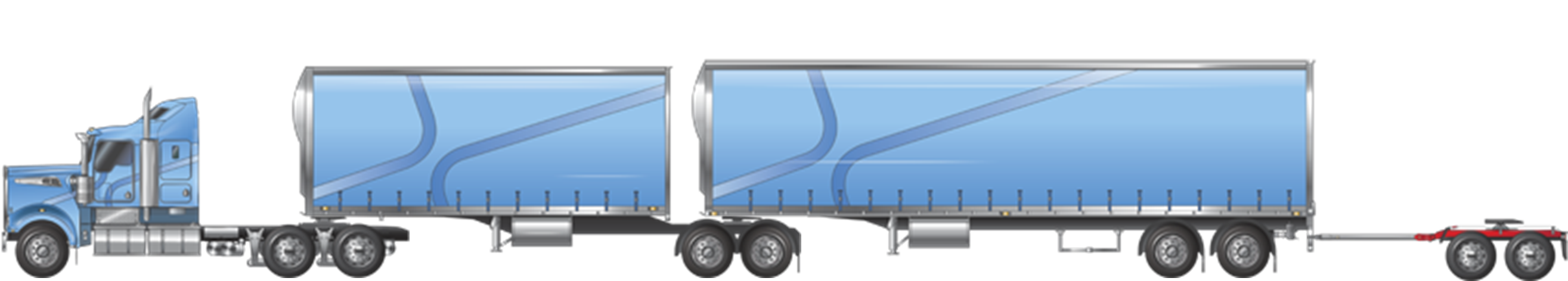

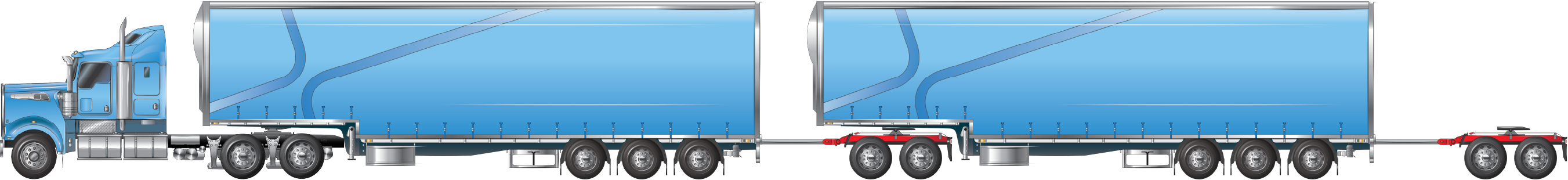

A-double towing an unladen converter dolly		36.5

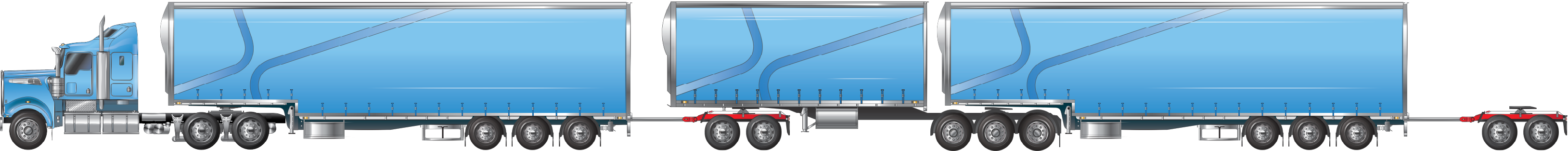

AB-triple towing an unladen converter dolly		36.5

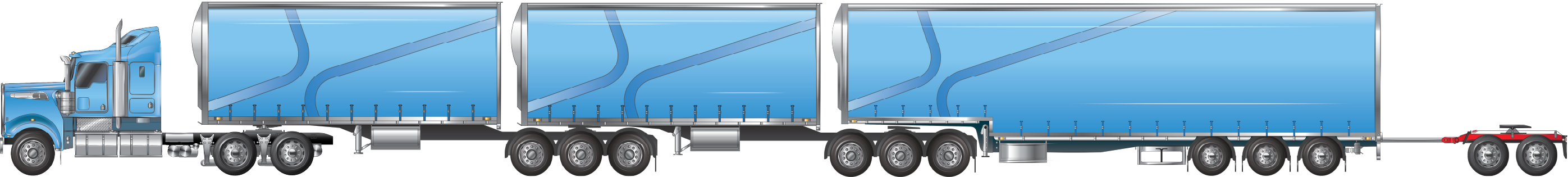

B-triple towing an unladen converter dolly		36.5
B-triple (modular) towing an unladen converter dolly		36.5

Conditions

Notices are subject to various conditions to ensure public safety, protect assets and prevent adverse impacts on the community, such as noise, emissions and traffic congestion. See the sections below for specific conditions related to the Notice.

Other conditions and additional information

Assessing routes

Before an eligible vehicle is driven along any route, its driver and operator must be satisfied that the route has been assessed and that the vehicle can be driven along it without:

• disrupting telecommunication, electricity, rail, gas, water or sewage services; or
• damaging a road (including a bridge), structure, rail crossing or tree.

Part of this process is assessing the Map and reading this Guide before travel to identify any restrictions or conditions that may affect travel. In some cases, approval is required from third parties or entities when a vehicle exceeds certain mass or dimension limits.

Third party approvals

Gazette notices, permits and some jurisdictional laws may require third parties and other entities to provide permission for a vehicle to travel if it exceeds certain mass or dimension limits.

Operators must secure all approvals from third parties such as electricity/utility companies, rail authorities and other third parties as part of their heavy vehicle operations.

For more information, visit the Third party approvals page.

Warning signs

Eligible combinations longer than 22m but not longer than 30m must display a long vehicle warning sign at the vehicle's rear (as shown in Figure 1).

Eligible combinations longer than 30m must display a road train warning sign at the front and rear of the combination (as shown in Figure 2).

Warning sign requirements are described in the NHVR's Vehicle Standards Guide (VSG-19).

Complying with the HVNL

Unless otherwise exempted by the Notice or this Operator's Guide, operators must ensure their vehicle or combination complies with the:

• Australian Design Rules (ADRs); and,
• Heavy Vehicle National Law (HVNL); and,
• Heavy Vehicle (Mass, Dimension and Loading) National Regulation (MDL); and,
• Heavy Vehicle (Vehicle Standards) National Regulation (VS Regulation).

Using or permitting another person to use a defective heavy vehicle or a heavy vehicle with unapproved modifications on a road may be an offence.

Failure to comply may result in the driver and/or operator being liable for an offence. Penalties can include infringement notices or prosecution.

Chain of Responsibility (CoR)

Under the HVNL, every party in the Chain of Responsibility (CoR) has a positive duty to ensure the safety of their activities in relation to a heavy vehicle. This duty, known as the “primary duty”, applies to the scheduling, loading and consigning of a vehicle, as well as to its operation on a road.

Safety is broader than the safety of drivers and other road users. It also includes protection of road infrastructure, preventing damage to other vehicles or property, and minimising environmental harm. Substantial penalties may be imposed upon parties who breach this obligation and upon their executives.

For more information on your CoR obligations visit Chain of Responsibility on the NHVR website.

Our Regulatory Advice offers guidance, tips and tools for managing a range of heavy vehicle safety risks.

Loading requirements

To meet the loading requirements, the heavy vehicle must be loaded:

• in a way that load placement does not make the heavy vehicle unsafe or unstable
• in a way that the load is not likely to fall or be dislodged from the vehicle
• using an appropriate system to restrain the load.

Visit the NHVR loading page for more information on load requirements.

The requirement to carry the Notice

Drivers do not need to carry a copy of the Notice.

Network and mapping

For the purposes of s121 of the HVNL, an area or route specified in the 'Network & Mapping' section of this Operator's Guide is a stated area or route to which this Notice applies. In addition to complying with the conditions stated in this Operator's Guide, operators must ensure compliance with the specific road manager access requirements set out below or in network maps.

In this tab, you will find the approved routes authorised under the Notice. There may also be network conditions pursuant to the stated areas and routes under the Notice. Network conditions relate to road and travel conditions that are not contained within the Notice.

National Network Map

This Notice may refer to state or territory government websites for the publication of networks. From 20 December 2023, certain authorised heavy vehicle road network maps for the Australian Capital Territory, New South Wales, Queensland, South Australia, and Victoria are published by the National Heavy Vehicle Regulator, through the NHVR National Network Map. Additional information and guidance can be found on the National Network Map webpage.

Approved routes covered by the Notice

The following routes are approved for travel for vehicles eligible under this Notice.

Queensland network mapping

• QLD Heavy vehicle route maps and restrictions

Specified road manager network requirements

The following section outlines specific road manager route requirements under the Notice, including route conditions and restrictions.

Road manager route requirements in this section may change from time to time and should be reviewed regularly to ensure compliance.

For further information on how to comply with a requirement, please contact the relevant road manager.

Road managers may publish specific route conditions and restrictions on the approved network map. These must be complied with in addition to any route requirements outlined in this Operator's Guide. If a condition listed in any section of this Operator's Guide conflicts with a route condition or restriction published on an approved network map, the more restrictive requirement applies.

Related notices

In this tab, you will find a list of state and territory notices related to the Queensland Class 3 Converter Dolly Combination Exemption Notice 2024 (No.1).

A related notice may be comparable with this Notice or provide alternatives for operators to find the appropriate notice under which to operate.

Related national notices

Related state and territory notices

Resources

There are currently no resources, supporting documents, tools, or calculators for this Notice. All information about the Notice is contained in this Operator’s Guide. Please refer to the tabs for more information about this notice, or contact us with your specific questions.

Note: If you have any feedback on the information provided, please contact us at info@nhvr.gov.au

Participating jurisdiction heavy vehicle resources

For more information about operating a heavy vehicle in participating jurisdictions, refer to the following sites:

• Queensland: Department of Transport and Main Roads (TMR) - Heavy vehicles

Changes and updates
