The South Australia Class 1 Low Loader Exemption Trial Notice 2025 (No.2) grants exemptions from mass and dimension requirements for a Class 1 heavy combination that includes a low loader or a Class 1 heavy combination that includes a low loader dolly and low loader.
Note: The Notice provides an exemption from certain heavy vehicle mass and dimensions limits outlined in the MDL for Class 1 vehicles operating in South Australia.
This instrument does NOT exempt these heavy vehicles from other requirements of the Heavy Vehicle National Law (HVNL), including, but not limited to, other mass and dimension requirements.
| Specifications | |
|---|---|
| Gazette Notice: | C2025G00034 |
| Starts: | 23 January 2025 |
| Expires: | 22 January 2026 |
| Vehicle types: | Class 1, prime mover towing a low loader, prime mover towing a low loader dolly and low loader |
| Exemptions: |
Mass requirements (axle mass limits, axle spacing mass limits, axle group mass limits, general combination mass, single vehicle mass) Dimension requirements (general length, combination length, width, height by load, rear overhang) |
| Law: | HVNL, MDL |
| Coverage: | SA |
| To be carried: | Yes |
- Overview
- Definitions
- Eligible
Vehicles - Conditions
- Network and
Mapping - Related
Notices - Resources
- Changes and
Updates
Overview
The information in this Operator’s Guide is intended to do two things:
- Explain how the South Australia Class 1 Low Loader Exemption Trial Notice 2025 (No.2) (the Notice) operates, to assist in complying with it. It is important to remember this Operator’s Guide is instructional only and it is the Notice that provides the exemption or authorisation. If there is a difference or misunderstanding between the Operator’s Guide and the Notice, the Notice has priority and must be followed. The only exceptions are the requirements or conditions set out in the ‘Network and Mapping’ section explained below.
- Provide additional information referred to in the network requirements of the Notice. This includes links to network maps and other information such as vehicle, travel and road conditions. Networks and their conditions published in the ‘Network and Mapping’ section of this Operator’s Guide are not general advice and must be treated as conditions of the Notice.
Please read the Notice and this Operator’s Guide together. To download or print this guide, use the print or PDF buttons on the top right of this page.
About the Notice
The Notice provides a Class 1 heavy vehicle combination consisting of a:
- prime mover towing a low loader dolly; or
- prime mover towing a low loader dolly and a low loader,
with exemptions from mass and dimension requirements under the Heavy Vehicle (Mass, Dimension and Loading) National Regulation (MDL).
To operate as an eligible vehicle under the Notice, a heavy vehicle combination must:
- be carrying or designed for the purpose of carrying a large indivisible item; and
- comply with the conditions of the Notice.
The Notice complements but operates separately from the National Class 1 Load Carrying Vehicle Dimension Exemption Notice 2025 (No.1)
and National Class 1 Load Carrying Vehicle Mass Exemption Notice 2025 (No.1). Operators should check these notices for access before considering applying for a permit.
For example, unladen vehicles are not eligible to operate under this Notice – but may operate under the National Class 1 Load Carrying Vehicle Dimension Exemption Notice 2025 (No.1)
Exemptions
These exemptions only apply to the extent to which conditions are granted.
Dimension exemptions
An eligible vehicle combination operating under the Notice is exempt from the following dimension requirements of Schedule 6 of MDL:
- section 3 - Length – combination or single vehicle
- section 5 – Length – rear overhang
- section 7 – Width
- section 8 – Height.
Mass exemptions
The Notice exempts eligible vehicles from the following mass requirements specified in Schedule 1 of the MDL:
- section 2 – Mass limits for a single vehicle or combination
- section 4 – Mass limits for a single axle or axle group
- section 5 – Mass limits in relating to axle spacing generally.
Additional or conditional mass limits allowed under this Notice must not exceed manufacturer mass limits as outlined in section 8 of the MDL.
The exemption only applies to combination mass and axle mass limits. If two or more mass limits are provided that impose different limits, the lower limits apply.
Note: Other mass and dimension limits in the MDL apply.
Definitions
The following are terms used in this Notice or conditions of operation. Unless otherwise stated, words and expressions used in this Notice have the same meaning as defined in the HVNL.
|
Term |
Definition |
|---|---|
| ADR | Australian Design Rules. |
| As constructed |
The maximum width to which a low loader or low loader dolly may be constructed. For example, a maximum 2.5m ‘as constructed’ width means that a low loader must be no more than 2.5m wide prior to its width being adjusted. The low loader may be built to be expanded by its operator to a greater width. |
|
Closed quad-axle group (also denoted as “4 @ 1.2”) |
Closed quad-axle group means a group of:
|
|
Closed quin-axle group (also denoted as “5 @ 1.2”) |
Closed quin-axle group means a group of:
|
|
Closed tri-axle group (also denoted as “3 @ 1.2”) |
Closed tri-axle group means a group of:
|
|
Ground Contact Width (GCW) |
The distance between the outermost points of ground contact of the outside tyres on each end of an axle.
|
| HVNL | Heavy Vehicle National Law. |
|
Low loader |
A semitrailer with a loading deck no more than 1.0m above the ground. |
|
Low loader dolly |
A device for distributing mass that—
|
| MDL | Heavy Vehicle (Mass, Dimension and Loading) National Regulation. |
| Spread quad-axle group (also denoted as “4 @ 1.2, 2.4, 1.2”) |
Means a group of 4 axles, where:
|

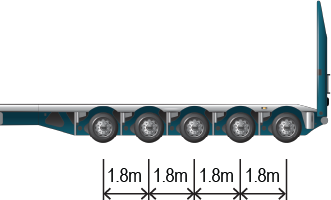

| Spread quin-axle group (also denoted as “5 @ 1.8”) |
|
|
Spread tri-axle group |
Means a group of:
|
| The Notice | South Australia Class 1 Low Loader Exemption Trial Notice 2024 (No.2) |
| VS Regulation | Heavy Vehicle (Vehicle Standards) National Regulation. |
Eligible vehicles
To be eligible to operate under the Notice, eligible vehicles must comply with the conditions of the Notice and all other requirements of the MDL, except where specifically exempted by the Notice.
Prime movers eligible to operate under the Notice must have a:
- single steer axle.
- dual-drive tandem axle group.
Low loader dollies eligible to operate under the Notice must be a tandem axle group, with each axle being fitted with either 4 or 8 tyres.
The Notice applies to a Class 1 heavy vehicle operating in South Australia, as listed in Table 1. Note that the images are indicative only and not an exhaustive list.
| Description | Image of eligible vehicle |
|---|---|

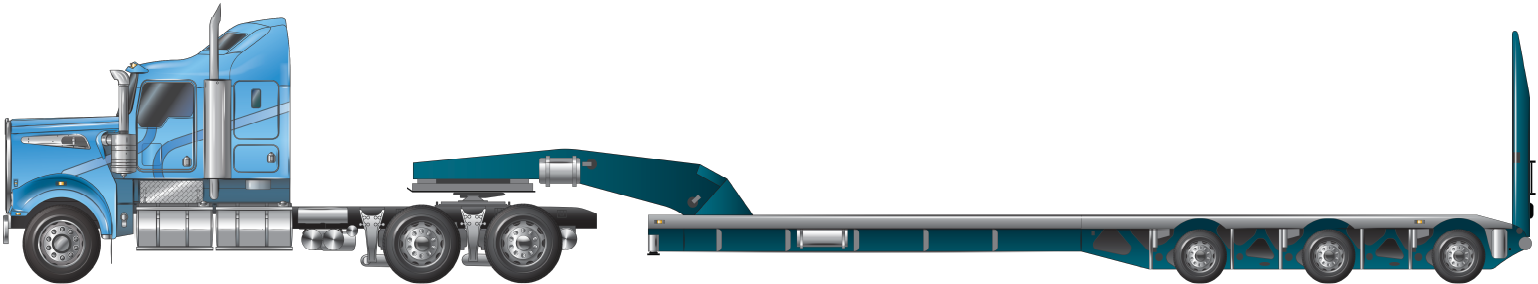

| Prime mover towing a tri-axle low loader |
|

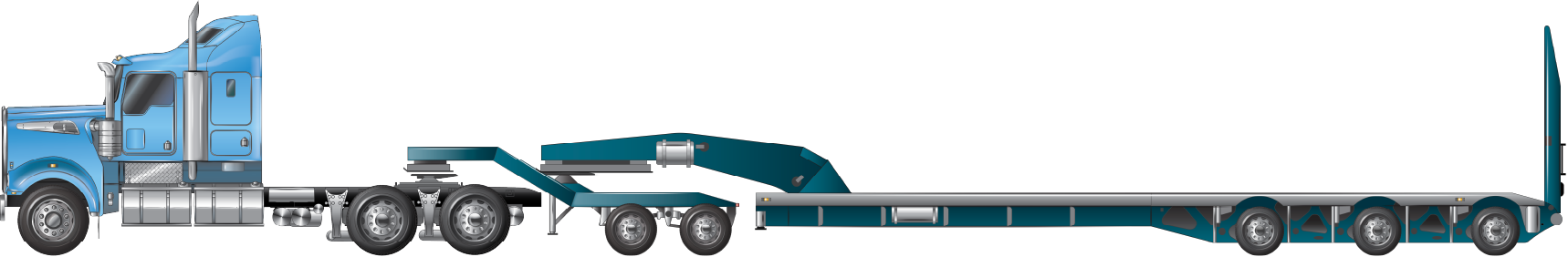

| Prime mover towing a low loader dolly and tri-axle low loader |
|

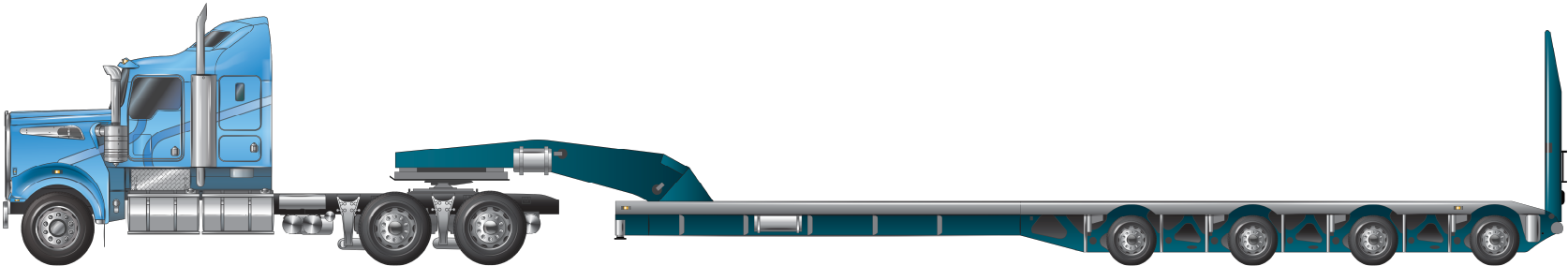

| Prime mover towing a quad-axle low loader |
|

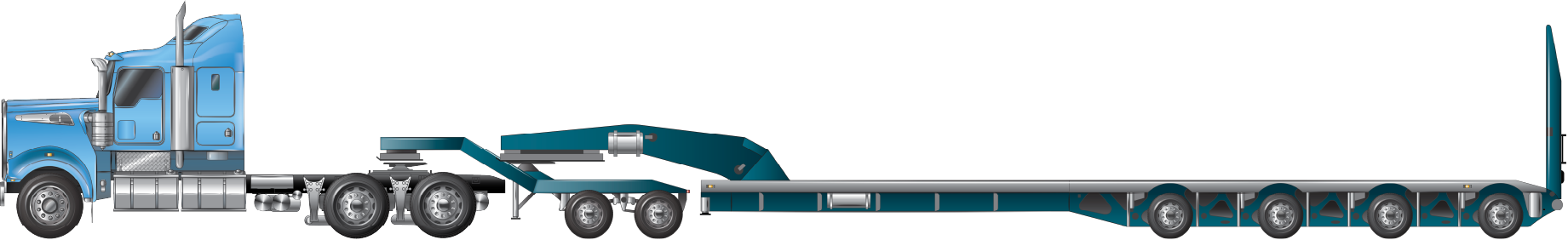

| Prime mover towing a low loader dolly and quad-axle low loader |
|

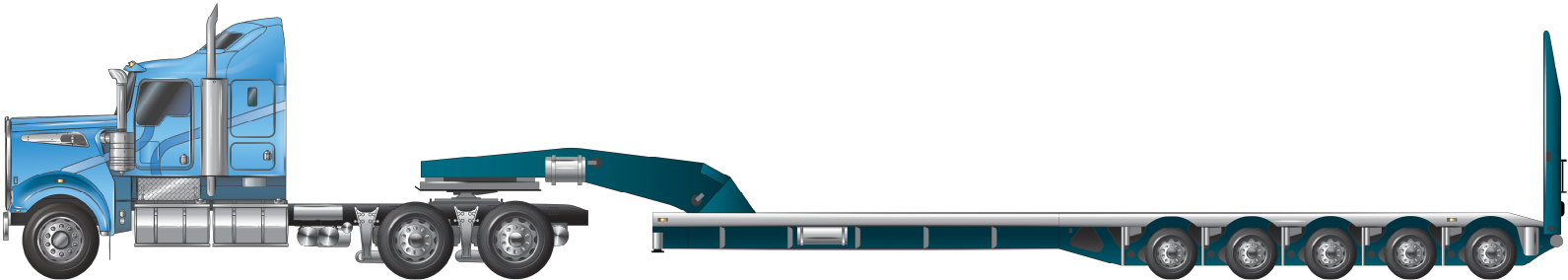

| Prime mover towing a quin-axle low loader |
|

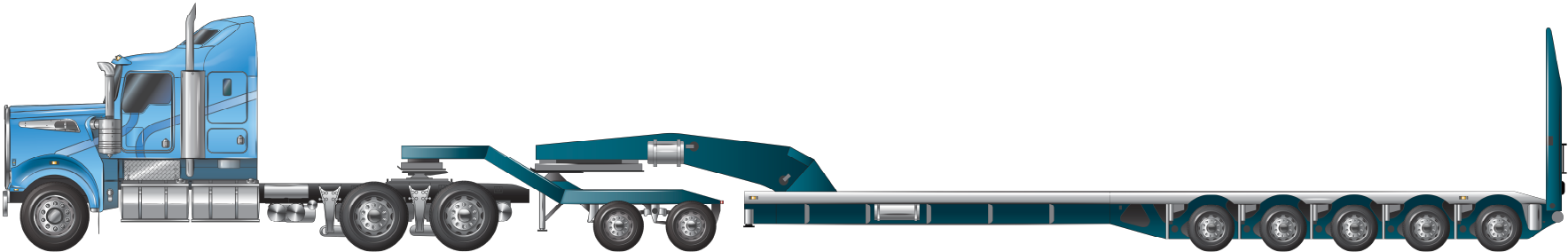

| Prime mover towing a low loader dolly and quin-axle low loader |
|
Conditions
Notices are subject to various conditions to ensure public safety, protect assets and prevent adverse impacts on the community, such as noise, emissions and traffic congestion. See the sections below for specific conditions related to the Notice.
Dimension conditions - Click to expand
Dimension limits
An eligible combination must comply with the dimension limits described in Table 2.
| Parameter | Maximum dimension limit (m) |
|---|---|
| Height* | 5.0 |
| Width | 5.5 |
| Length | 36.5 |
| * Before operating an eligible vehicle over 4.6m high, operators should consult with SA Power Networks to ensure powerlines on the route will allow sufficient overhead clearance. | |
Dimension conditions
Smallest practicable dimensions
An eligible vehicle must be loaded and operated to the smallest practicable dimension. For example, if a load is 3.2m wide, the low loader must be configured to be not wider than required to safely transport the load. In this instance, not more than 3.2-3.3m wide opposed to 5.5m.
Low loaders and low loader dollies
A low loader and any low loader dolly with 4 tyres on each axle must not be wider than 2.5 m as constructed.
A low loader and any low loader dolly with 8 tyres on each axle must not be wider than 2.7 m as constructed.
Rear overhang limits
An eligible combination must have a rear overhang length not exceeding the lesser of:
- 25 percent of the total combination length; or
- The applicable value of Table 3.
The rear overhang for eligible combinations is measured from the centre of the axle group to the rear of the vehicle/load, as shown in Figure 1. More information can be found on the Rear overhang page.
| Combination length (including load) |
Maximum rear overhang (m) |
|
|---|---|---|
|
Over |
Up to and including |
|
|
- |
25.0 |
5.5 |
|
25.0 |
26.0 |
6.4 |
|
26.0 |
27.0 |
6.7 |
|
27.0 |
28.0 |
7.0 |
|
28.0 |
29.0 |
7.3 |
|
29.0 |
36.5 |
7.6 |
Mass conditions - Click to expand
Axle mass limits
Prime mover and low loader dolly combinations
An eligible combination must comply with the axle mass requirements in Table 4.
| Axle type | Maximum axle mass (t) | |
|---|---|---|
| Single steer axle | Tyre section width less than 375mm | 6.0 |
| Tyre section width at least 375mm | 7.0 | |
| Tandem drive axle | 18.5 | |
| Low loader dolly axle group (4 tyres per axle) | 18.5 | |
| Low loader dolly axle group (8 tyres per axle) | 31.5 | |
Dual-drive tandem axle group and low loader dolly
An eligible combination which includes a low loader dolly must comply with the mass requirements in Table 5.
The minimum low loader dolly ground contact width (GCW) is stated in 'Column 1'.
How to read Table 5 example

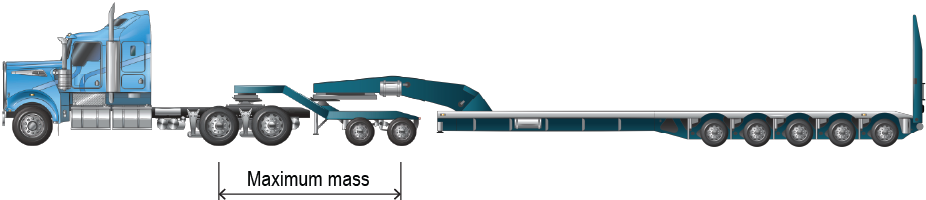

The centreline from the first axle in the dual drive tandem axle group to the last axle in the low loader dolly is marked as the 'Maximum mass'.
- Marked in Bold in Table 5, is an example of how to calculate the maximum mass by aligning 'Column 1' and 'Column 2' for an eight-tyre axle.
- Minimum ground contact width of 4.6m ('Column 1') plus an axle spacing of 5.6m ('Column 2') is 50.0t.
| Column 1 | Column 2 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Minimum dolly axle group ground contact width (m) | Maximum combined mass for dual-drive tandem axle group and the low loader dolly in tonnes (t) for a given minimum axle spacing from centreline of the first axle in the dual-drive tandem axle group, and the last axle on the low loader dolly (m) | |||||||||||||
| 3.6m | 3.8m | 4.0m | 4.2m | 4.4m | 4.6m | 4.8m | 5.0m | 5.2m | 5.4m | 5.6m | 5.8m | 6.0+m | ||
| 4 tyred axle mass limit (t) | ||||||||||||||
| 2.4 | 29.0 | 30.0 | 31.0 | 32.0 | 33.0 | 34.0 | 35.0 | 36.0 | 37.0 | 37.0 | 37.0 | 37.0 | 37.0 | |
| 8 tyred axle mass limit (t) | ||||||||||||||
|
2.4 |
29.0 |
30.0 |
31.0 |
32.0 |
33.0 |
34.0 | 35.0 | 36.0 | 37.0 | 38.0 | 39.0 | 39.5 | 40.0 | |
|
2.6 |
30.0 |
31.0 |
32.0 |
33.0 |
34.0 |
35.0 | 36.0 | 37.0 | 38.0 | 39.0 | 40.0 | 40.5 | 41.0 | |
|
2.8 |
31.0 |
32.0 |
33.0 |
34.0 |
35.0 |
36.0 | 37.0 | 38.0 | 39.0 | 40.0 | 41.0 | 41.5 | 42.0 | |
|
3.0 |
32.0 |
33.0 |
34.0 |
35.0 |
36.0 |
37.0 | 38.0 | 39.0 | 40.0 | 41.0 | 42.0 | 42.5 | 43.0 | |
|
3.2 |
33.0 |
34.0 |
35.0 |
36.0 |
37.0 |
38.0 | 39.0 | 40.0 | 41.0 | 42.0 | 43.0 | 43.5 | 44.0 | |
|
3.4 |
34.0 |
35.0 |
36.0 |
37.0 |
38.0 |
39.0 | 40.0 | 41.0 | 42.0 | 43.0 | 44.0 | 45.0 | 45.5 | |
|
3.6 |
35.0 |
36.0 |
37.0 |
38.0 |
39.0 |
40.0 | 41.0 | 42.0 | 43.0 | 44.0 | 45.0 | 46.0 | 46.5 | |
|
3.8 |
35.5 |
36.5 |
37.5 |
38.5 |
40.0 |
41.0 | 42.0 | 43.0 | 44.0 | 45.0 | 46.0 | 47.0 | 48.0 | |
|
4.0 |
35.5 |
37.0 |
38.0 |
39.0 |
40.5 |
42.0 | 43.0 | 44.0 | 45.0 | 46.0 | 47.0 | 48.0 | 49.0 | |
|
4.2 |
35.5 |
37.0 |
38.0 |
39.5 |
41.0 |
43.0 | 44.0 | 45.0 | 46.0 | 47.0 | 48.0 | 49.0 | 50.0 | |
|
4.4 |
35.5 |
37.0 |
38.0 |
39.5 |
41.5 |
44.0 | 45.0 | 46.0 | 47.0 | 48.0 | 49.0 | 50.0 | 50.0 | |
|
4.6 |
35.5 |
37.0 |
38.0 |
39.5 |
41.5 |
45.0 | 46.0 | 47.0 | 48.0 | 49.0 | 50.0 | 50.0 | 50.0 | |
Low loader axle groups
An eligible combination must comply with the low loader axle group mass requirements in Table 6.
The minimum ground contact width is stated in 'Column 1' for a low loader.
How to read Table 6 example

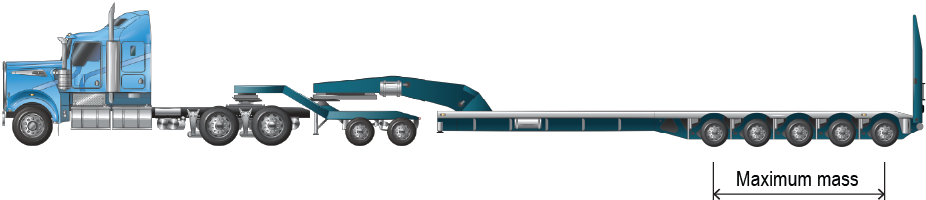

The centreline from the first axle on the low loader to the last axle on the low loader:
• Marked in Bold in Table 8, is an example of how to calculate the maximum mass by aligning 'Column 1' and 'Column 2' for an eight-tyre axle.
• Minimum ground contact width of 4.6m ('Column 1') plus an axle spacing of 5@1.8m ('Column 2') is 57.5t.
| Column 1 | Column 2 | |||
|---|---|---|---|---|
| Minimum low loader axle group ground contact width (m) | Axle configuration | |||
| 3@1.2 | 3@1.8 | 4@1.2 | 4@1.2,1.4,1.2 5@1.2 5@1.8 |
|
| 4 tyred axle mass limit (t) | ||||
| 2.4 | 25.0 | 27.0 | 30.0 | 35.0 |
| 8 tyred axle mass limit (t) | ||||
|
2.4 |
25.0 |
27.0 |
30.0 |
35.0 |
|
2.6 |
26.0 |
29.0 |
31.5 |
36.0 |
|
2.7 |
27.0 |
31.0 |
33.0 |
37.5 |
|
2.8 |
28.0 |
33.0 |
34.0 |
39.0 |
|
2.9 |
29.0 |
34.5 |
35.0 |
40.0 |
|
3.0 |
30.0 |
36.0 |
36.0 |
41.0 |
|
3.1 |
31.0 |
37.5 |
37.5 |
42.0 |
|
3.2 |
32.0 |
39.0 |
39.0 |
43.5 |
|
3.3 |
220 |
40.0 |
40.0 |
44.5 |
|
3.4 |
34.0 |
41.0 |
41.0 |
46.0 |
|
3.5 |
35.0 |
42.0 |
42.0 |
47.0 |
|
3.6 |
36.0 |
43.0 |
43.0 |
48.0 |
|
3.7 |
37.0 |
44.0 |
44.0 |
49.0 |
|
3.8 |
38.0 |
45.0 |
45.0 |
50.0 |
|
3.9 |
39.0 |
46.0 |
46.0 |
51.0 |
|
4.0 |
40.0 |
47.0 |
47.0 |
52.0 |
|
4.1 |
40.0 |
48.0 |
48.0 |
53.0 |
|
4.2 |
40.0 |
48.0 |
49.0 |
54.0 |
|
4.3 |
40.0 |
48.0 |
50.0 |
55.0 |
|
4.4 |
40.0 |
48.0 |
51.0 |
56.0 |
|
4.5 |
40.0 |
48.0 |
52.0 |
57.0 |
|
4.6 |
40.0 |
48.0 |
52.5 |
57.5 |
General conditions - Click to expand
Pilot and escort vehicle conditions
An eligible vehicle must comply with any relevant conditions in the Escorting Guidelines for Oversize and Overmass Vehicles and Loads in South Australia.
Eligible vehicle requirements
Prime mover
A prime mover that forms part of an eligible vehicle must have a dual-drive tandem axle group.
Low loader dolly axle group
An axle group on a low loader dolly forming part of an eligible vehicle must:
- have two axles; and
- have a maximum of eight tyres per axle; and
- have a minimum of four tyres per axle.
Low loader axle groups
A low loader that forms part of an eligible vehicle must comply with the following conditions:
- the low loader must have three, four or five axles; and
- each axle must be fitted with a maximum of eight tyres; and
- each axle must be fitted with a minimum of four tyres; and
- each axle must be of the configuration identified in Column 2 of Table 6.
Speed restrictions
Table 7 shows the maximum speed an eligible combination can operate at, unless the posted speed indicates a lower speed.
|
Laden mass of combination |
Maximum speed |
|---|---|
|
Greater than 75t and up to 100t |
80kph |
|
Greater than 100t |
60kph |
Warning signs
Warning signs must be designed and fitted in accordance with Schedule 8 Part 3 Division 2 of the MDL. For more information, see Schedule 8, Oversize signs webpage.
Other conditions and additional information
Assessing routes
Before an eligible vehicle is driven along any route, its driver and operator must be satisfied that the route has been assessed and that the vehicle can be driven along it without:
- disrupting telecommunication, electricity, rail, gas, water or sewage services; or
- damaging a road (including a bridge), structure, rail crossing or tree.
Prior to commencing a journey a driver or operator of an eligible vehicle must check for any information about updates and any restrictions or limitations applying to the proposed route.
The driver or operator must, before commencing the relevant journey, identify any relevant road closures and road conditions or restrictions that may inhibit the movement of the eligible vehicle.
Third party approvals
Gazette notices, permits and some jurisdictional laws may require third parties and other entities to provide permission for a vehicle to travel if it exceeds certain mass or dimension limits.
Operators must secure all approvals from third parties such as electricity/utility companies, rail authorities and other third parties as part of their heavy vehicle operations.
Before operating an eligible vehicle over 4.6m high, operators should consult with SA Power Networks to ensure powerlines on the route will allow sufficient overhead clearance.
For more information, visit the Third party approvals page.
Loading requirements
To meet the loading requirements, the heavy vehicle must be loaded:
- in a way that load placement does not make the heavy vehicle unsafe or unstable
- in a way that the load is not likely to fall or be dislodged from the vehicle
- using an appropriate system to restrain the load.
Visit the NHVR loading page for more information on load requirements.
Complying with the HVNL
Unless otherwise exempted by the Notice or this Operator's Guide, operators must ensure their vehicle or combination complies with the:
- Australian Design Rules (ADRs); and,
- Heavy Vehicle National Law (HVNL); and,
- Heavy Vehicle (Mass, Dimension and Loading) National Regulation (MDL); and,
- Heavy Vehicle (Vehicle Standards) National Regulation (VS Regulation).
Using or permitting another person to use a defective heavy vehicle or a heavy vehicle with unapproved modifications on a road may be an offence.
Failure to comply may result in the driver and/or operator being liable for an offence. Penalties can include infringement notices or prosecution.
Chain of Responsibility (CoR)
Under the HVNL, every party in the Chain of Responsibility (CoR) has a positive duty to ensure the safety of their activities in relation to a heavy vehicle. This duty, known as the “primary duty”, applies to the scheduling, loading and consigning of a vehicle, as well as to its operation on a road.
Safety is broader than the safety of drivers and other road users. It also includes protection of road infrastructure, preventing damage to other vehicles or property, and minimising environmental harm. Substantial penalties may be imposed upon parties who breach this obligation and upon their executives.
For more information on your CoR obligations visit Chain of Responsibility on the NHVR website.
Our Regulatory Advice offers guidance, tips and tools for managing a range of heavy vehicle safety risks.
The requirement to carry the Notice
A copy of the Notice must be carried at all times by a driver of an eligible vehicle operating under the Notice and the driver must be able to produce it to an authorised officer or a police officer on request.
Network and mapping
For the purposes of s121 of the HVNL, an area or route specified in the 'Network & Mapping' section of this Operator's Guide is a stated area or route to which this Notice applies. In addition to complying with the conditions stated in this Operator's Guide, operators must ensure compliance with the specific road manager access requirements set out below or in network maps.
In this tab, you will find the approved routes authorised under the Notice. There may also be network conditions pursuant to the stated areas and routes under the Notice. Network conditions relate to road and travel conditions that are not contained within the Notice.
National Network Map
Certain authorised heavy vehicle road network maps for the Australian Capital Territory, New South Wales, Queensland, South Australia, and Victoria are published by the National Heavy Vehicle Regulator, through the NHVR National Network Map. Additional information and guidance can be found on the National Network Map webpage.
Approved routes covered by the Notice
The following routes are approved for travel for vehicles eligible under this Notice.
Approved routes covered by the Notice - Click to expand
A copy of the Notice must be carried at all times by a driver of an eligible vehicle operating under this Notice, and the driver must produce it upon request of an authorised officer or a police officer.
An eligible vehicle must comply with any relevant conditions in the Escorting Guidelines for Oversize and Overmass Vehicles and Loads in South Australia.
For SA Power Networks, consultation is required for vehicles operating over 4.6m high.
An eligible combination must comply with the conditions or restrictions of operating on an area of route stated in the Dimension Restrictions Map page of the South Australia Government’s website at www.sa.gov.au/heavyvehicles.
Locating the network
To view the network for the Notice, go to the Trial - Load Carrying Vehicle Networks map. Once you are on the main page of the map, go to the top-right side and select the folder icon. Once you have selected the folder or 'Layer lists', locate the 'Low loader combinations' header and select the 'Low loader up to 118.5t' network that coincides with Table 8.
An eligible vehicle complying with the conditions of the Notice may operate on the networks specified in Table 8.
|
Eligible vehicle |
Approved route/network |
|---|---|
|
Any eligible vehicle |
Specified road manager network requirements
The following section outlines specific road manager route requirements under the Notice, including route conditions and restrictions.
Road manager route requirements in this section may change from time to time and should be reviewed regularly to ensure compliance.
For further information on how to comply with a requirement, please contact the relevant road manager.
Road managers may publish specific route conditions and restrictions on the approved network map. These must be complied with in addition to any route requirements outlined in this Operator's Guide. If a condition listed in any section of this Operator's Guide conflicts with a route condition or restriction published on an approved network map, the more restrictive requirement applies.
South Australia network conditions - Click to expand
There are two network access conditions that may apply to eligible vehicles on the South Australian network.
- South Australia road manager conditions (Table 9).
- Requirements to travel over structures (Table 10).
|
Road manager |
Conditions |
|---|---|
|
Department of Infrastructure and Transport |
Adelaide Metropolitan Area:
Adeliade Hills dimension condition:
|
Dimension Restrictions map
The Dimension Restrictions map has been developed to assist in journey and route planning and should be used alongside the National Heavy Vehicle Regulator’s Route Planner and TrafficSA prior to commencing any journey in South Australia.
The map includes the following information:
- points, roads, and zones where there are dimension limitations (height, width and length)
- major railways and level crossings
- pilot and marshalling locations in South Australia
- network access notes.
For further information about the map, please visit the Dimension Restrictions map webpage.
Travel over structures
To arrange a police escort at the sites listed in Table 10, please phone 131 444. SAPOL requires advance notice of these moves and has requested that they be contacted as soon as practicable ahead of travel, to minimise the chance that an escort is not available when needed.
|
Structure name |
Coordinates |
South Australian Police to provide escort |
When in excess of (m) width |
|---|---|---|---|
|
Hindmarsh Island Bridge |
35°30'14.3"S 138°47'14.5"E |
Goolwa Police |
3.5 |
|
Port Augusta Rail Bridge approximately 2.5km southeast of Joy Baluch Am Bridge, Port Augusta |
32°30'11.6"S 137°46'52.9"E |
Port Augusta Police |
4.0 |
|
Swanport Bridge |
35°08'50.7"S 139°18'31.5"E |
Murray Bridge Police |
4.0 |
|
Murray Bridge |
35°06'55.9"S 139°16'47.9"E |
Murray Bridge Police |
4.0 |
|
Berri Bridge |
34°17'22.7"S 140°35'59.4"E |
Berri Police |
4.0 |
|
Blanchetown Bridge |
34°20'43.5"S 139°36'59.8"E |
Blanchetown Police |
4.0 |
|
Kingston Bridge |
34°13'48.0"S 140°21'59.4"E |
Barmera Police |
4.0 |
Traffic advisory services - Click to expand
Prior to commencing any journey, operators should review traffic alerts, road closures, travel delays, and other traffic advisory information for participating jurisdictions.
Table 11 provides details and links to official traffic advisory services for each participating jurisdiction. For more information about a particular service, contact the relevant jurisdiction or department via the contact details listed on the service webpage.
|
Jurisdiction |
Website |
Purpose |
|---|---|---|
| South Australia | Outback Road Warnings | Access the latest information about temporary closures, restrictions, and warnings for outback roads north and west of Port Augusta. |
| Prescribed burns | Information about upcoming prescribed burns in South Australia that may disrupt travel. | |
| Traffic SA | View live information about incidents and changes in South Australia traffic conditions. Traffic SA is available as a mobile app. See Addinsight download details on the Traffic SA website. |
Applying for a permit - Click to expand
Access permit applications are required for heavy vehicles that don’t comply with the conditions set out in a notice and when accessing routes that aren’t covered on an approved network.
The following pages provide useful information and resources for submitting access permit applications:
- Do I need a permit?: Information and resources for determining whether a road access permit, or a Notice is required to operate on Australian roads.
- Access permit application process: Information, resources, and instructions for submitting a valid access permit application.
Related notices
In this tab, you will find a list of national, state and territory notices related to the South Australia Class 1 Low Loader Exemption Trial Notice 2025 (No.2).
A related notice may be comparable with this Notice or provide alternatives for operators to find the appropriate notice under which to operate.
Related national notices
Related state and territory notices
| Jurisdiction | Notice |
|---|---|
| New South Wales |
Exempts Class 1 heavy vehicle combinations consisting of a prime mover and approved trailers, including dollies if required, from certain mass and dimension requirements under the HVNL. In addition, this notice exempts certain specialist vehicles such as block trucks that are used to assist the operation of Class 1 combinations. Please note the following supporting document for this Notice:
New South Wales Class 1 Load Carrying Vehicle Exemption Notice 2023 (No.1) Grants exemptions from mass and dimension requirements for a Class 1 heavy vehicle in New South Wales that is carrying, or is designed for the purpose of carrying, a large indivisible item. Please note the following supporting document for this Notice: |
| South Australia |
South Australia Class 1 Load Carrying Vehicle Dimension Exemption Trial Notice 2025 (No.2) Grants exemptions from dimension requirements for a Class 1 heavy vehicle for the transportation of a large indivisible item. South Australia Class 1 Platform Trailer Exemption Trial Notice 2025 (No.2) Grants exemptions from mass and dimension requirements for a Class 1 heavy combination that includes a platform trailer or a Class 1 heavy combination that includes a low loader dolly and a platform trailer. Provides access for class 1 heavy vehicles, carrying either large indivisible items or agricultural vehicles, which exceed regulation dimensions, to travel on roads in South Australia subject to conditions specified in the Notice. |
| Tasmania |
Tasmania Class 1 Load Carrying Vehicles Mass and Dimension Exemption Notice 2024 (No. 2) Exempts categories of laden and unladen Class 1 load carrying vehicles from the stated prescribed mass and dimension requirements in Schedule 1 and Schedule 6 of the Heavy Vehicle (Mass, Dimension and Loading) National Regulation. Please note the following supporting documents for this Notice: |
| Victoria |
Exempts specified categories of Class 1 Heavy Vehicles from prescribed mass and dimension requirements. This Notice clarifies the need for operators to comply with the Pilots and escort vehicles in mountainous areas requirements. Please note the following supporting information for this Notice: |
Resources
All information about the Notice is contained in this Operator’s Guide. Please refer to the tabs for more information about this Notice, or contact us with your specific questions.
Note: If you have any feedback on the information provided, please contact us at info@nhvr.gov.au
Participating jurisdiction heavy vehicle resources
For more information about operating a heavy vehicle in participating jurisdictions, refer to the following sites:
- South Australia: Department for Infrastructure and Transport (DIT) - Heavy vehicles
Changes and updates
| Date | Summary | Links to resources and communications |
|---|---|---|
| 23 January 2025 | South Australia Class 1 Low Loader Exemption Trial Notice 2025 (No.2) commenced and revoked South Australia Class 1 Low Loader Exemption Trial Notice 2025 (No.1). | C2025G00034 |
| 14 January 2025 | South Australia Class 1 Low Loader Exemption Trial Notice 2025 (No.1) registered and published (did not commence) | C2025G00027 |
www.nhvr.gov.au
E info@nhvr.gov.au
P 13 NHVR (136 487)
PO Box 492, Fortitude Valley QLD 4006
